UP Bass preamp
A compact and musical bass preamp designed for real-world players.
With a simple three-knob layout, it lets you shape your core tone quickly—boosting presence, tightening the low end, or adding punch to your mids.
Built for both passive and active basses, and optimized for live and studio use.
/Region

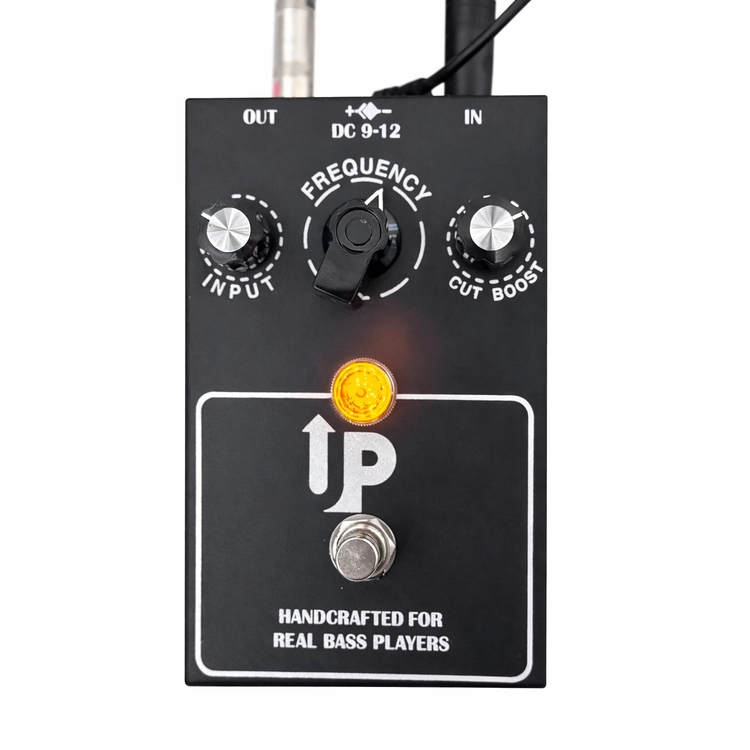

UP Bass Preamp is a compact tone-shaping preamp for bass guitar.
It provides a musical single-band EQ with a selectable center frequency, allowing you to tighten the low end, add punch, or enhance presence with simple controls.
Connections
① INPUT
- Connect your bass guitar here.
- Works with both passive and active basses.
② OUTPUT
- Connect to your amplifier input or the next pedal in your chain.
③ DC 9–12V (Centre-Negative)
- Use a center-negative DC 9–12V power supply.
- 12V offers increased headroom.
- If using 18V, use regulated power only.
Controls
④ INPUT Knob (Input Level)
- Clockwise increases input signal.
- Recommended adjustment for high-output pickups or active basses.
- Suggested starting point: 12 o’clock.
⑤ FREQUENCY Knob (EQ Center Frequency)
- Selects the center frequency of the EQ band.
- Lower settings: fuller body / low-end control.
- Mid settings: stronger presence and attack.
- This is the core tone-shaping control.
⑥ CUT / BOOST Knob
- Left: CUT / Right: BOOST for the selected frequency.
- Tuned for a musical response and natural feel.
Switching & Indicator
⑦ LED Indicator
- LED on: effect engaged.
- Vintage amplifier-style amber LED.
⑧ FOOTSWITCH
- Turns the effect ON/OFF.
Quick Start Settings
- Neutral / Always-on: INPUT 12 o’clock, FREQUENCY mid, CUT/BOOST at center (or slight boost).
- Tight Low End: FREQUENCY lower, CUT slightly.
- More Punch / Presence: FREQUENCY mid, BOOST slightly.
Notes
- If clipping/distortion occurs, lower the INPUT knob or reduce instrument output.
- For best results, set INPUT first, then choose FREQUENCY, then adjust CUT/BOOST.
UP Bass Preamp is a compact tone-shaping preamp for bass guitar.
It provides a musical single-band EQ with a selectable center frequency, allowing you to tighten the low end, add punch, or enhance presence with simple controls.
Connections
① INPUT
- Connect your bass guitar here.
- Works with both passive and active basses.
② OUTPUT
- Connect to your amplifier input or the next pedal in your chain.
③ DC 9–12V (Centre-Negative)
- Use a center-negative DC 9–12V power supply.
- 12V offers increased headroom.
- If using 18V, use regulated power only.
Controls
④ INPUT Knob (Input Level)
- Clockwise increases input signal.
- Recommended adjustment for high-output pickups or active basses.
- Suggested starting point: 12 o’clock.
⑤ FREQUENCY Knob (EQ Center Frequency)
- Selects the center frequency of the EQ band.
- Lower settings: fuller body / low-end control.
- Mid settings: stronger presence and attack.
- This is the core tone-shaping control.
⑥ CUT / BOOST Knob
- Left: CUT / Right: BOOST for the selected frequency.
- Tuned for a musical response and natural feel.
Switching & Indicator
⑦ LED Indicator
- LED on: effect engaged.
- Vintage amplifier-style amber LED.
⑧ FOOTSWITCH
- Turns the effect ON/OFF.
Quick Start Settings
- Neutral / Always-on: INPUT 12 o’clock, FREQUENCY mid, CUT/BOOST at center (or slight boost).
- Tight Low End: FREQUENCY lower, CUT slightly.
- More Punch / Presence: FREQUENCY mid, BOOST slightly.
Notes
- If clipping/distortion occurs, lower the INPUT knob or reduce instrument output.
- For best results, set INPUT first, then choose FREQUENCY, then adjust CUT/BOOST.
